OTR Simulator—Rigorous Calculation of Fermenter OTR

NAGASE developed a simulator performing rigorous calculation of Oxygen Transfer Rate (OTR), which is an important factor of aerobic cultures scale-up.


In many cases of aerobic cultures, oxygen transfer rate (OTR) correlates well to the productivity of an objective fermentation compound. Thus, OTR is regarded as a critical factor for fermentation scale-up and OTR estimations under given conditions have been performed for a long time. However, in the conventional method, some parameters (dissolved oxygen concentration and saturated-dissolved oxygen concentration) are fixed as assumed values, and this may cause inaccuracy of the estimation. Here, we developed a simulator executing rigorous calculation of fermenter OTR.


Decrease of partial pressure of oxygen in gas phase caused by respiration of cultured cells and following lowering of saturated-dissolved oxygen concentration in liquid phase are calculated. Oxygen uptake rate (OUR) of the cultured cells is expressed by a function of dissolved oxygen concentration. Under the assumption of a steady state, which means OTR is equal to OUR, an oxygen concentration value that satisfies the given conditions can be found. Thus, theoretical, not a priori, values of saturated-dissolved oxygen concentration and oxygen concentration are estimated. The desired OTR is calculated by using these values and a given kLa. A simulator implementing these procedures is developed by EQUATRAN-G (Omega simulation) and Excel (Microsoft).

Estimation examples

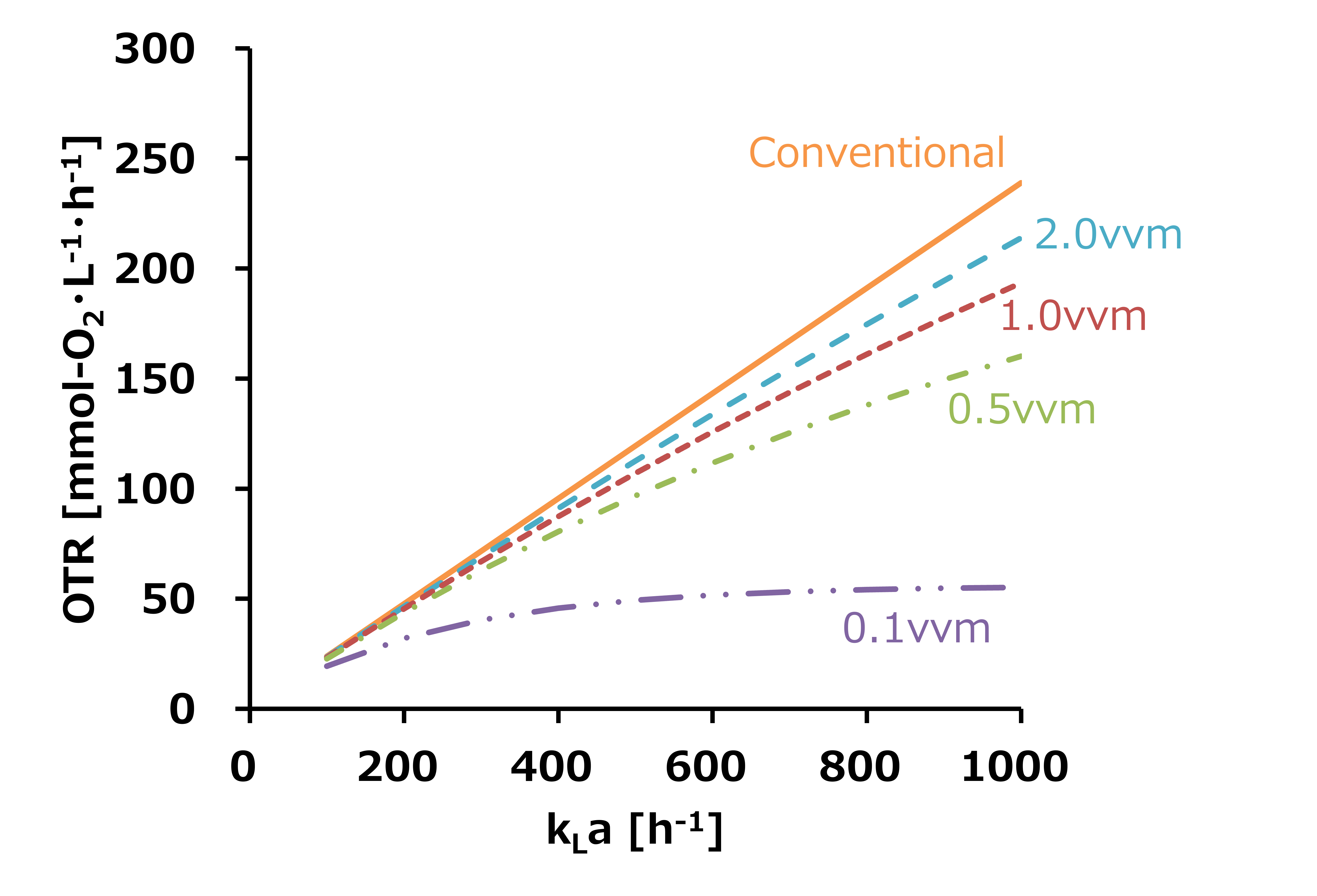

Figure 1 shows the estimation examples. By the conventional method, aeration rate has no effect for calculated OTR. However, our simulator estimates the lowering of OTR accompanying the decrease of aeration rate, even if kLa is set to a same value. This result suggests that one should pay attention to aeration rate, not only to kLa, when studying scale-up focused on OTR. Thus, the OTR simulator is especially valuable for estimating OTR of micro-aerobic cultures with extremely low aeration rate or cultures involving large consumption of oxygen caused by respiration of very high concentration cells.

Figure 1. Examples of OTR simulation
