Arcofeliz ™
AL series: Low-Endotoxin Sodium Alginate
Arcofeliz™ AL series is a high-performance, low-endotoxin sodium alginate developed by Nagase ChemteX. Derived from premium natural brown algae, this linear polysaccharide is engineered for high-end bioscientific applications where biological safety and structural precision are paramount.
Manufacturer:
Nagase ChemteX CorporationChemical Name:
Sodium Alginate (Low Endotoxin Grade)
Applications & Uses:
Medical Devices & Biomaterials:- Advanced wound dressings with high water-retention gel layers.
- Drug Delivery Systems (DDS) as a carrier for controlled drug release.
- Physical adhesion barriers for post-surgical recovery.
- Scaffolds for 3D cell culture.
- High-purity bio-ink for 3D bioprinting.
- Cell and tissue encapsulation for immunoselection.
- High-moisturizing serums and facial masks with superior adhesion.
- Viscosity adjustment and protective film formation in hair care products.
Benefits:
- Minimized Biological Risk: Ultra-low endotoxin levels prevent unintended cellular activation and inflammatory responses.
- Exceptional Biocompatibility: Safely interacts with sensitive biological tissues and cells.
- Highly Customizable: Wide range of viscosities and M/G ratios to achieve the exact gel strength and elasticity required.
- Premium Sensory Profile: Provides a smooth, non-sticky, and non-drip texture (pseudoplastic behavior).
Performance Attributes:
| Type | Product | Grade (1% viscosity) | Specifications | |
| Standard (M/G≒1.0) | Arcofeliz™ AL-ST5 Arcofeliz™ AL-ST20 Arcofeliz™ AL-ST200 Arcofeliz™ AL-ST400 Arcofeliz™ AL-ST600 Arcofeliz™ AL-ST1000 | <10mPa·s 10 - 50mPa·s 100 - 300mPa·s 300 - 500mPa·s 500 - 700mPa·s 800 - 1,200mPa·s | Viscosoty Loss on drying Endotoxin Level Bioburden | Grade-specific ≤15% ≤30EU/g ≤100CFU/g |
| G Rich (M/G≤0.8) | Arcofeliz™ AL-HG5 Arcofeliz™ AL-HG20 Arcofeliz™ AL-HG200 Arcofeliz™ AL-HG400 Arcofeliz™ AL-HG600 Arcofeliz™ AL-HG1000 | < 10mPa·s 10 - 50mPa·s 100 - 300mPa·s 300 - 500mPa·s 500 - 700mPa·s 800 - 1,200mPa·s | Viscosoty Loss on drying Endotoxin Level Bioburden | Grade-specific ≤15% ≤30EU/g ≤100CFU/g |
| M rich (M/G≥1.5) | Arcofeliz™ AL-HM5 Arcofeliz™ AL-HM20 Arcofeliz™ AL-HM200 Arcofeliz™ AL-HM400 Arcofeliz™ AL-HM600 Arcofeliz™ AL-HM1000 | < 10mPa·s 10 - 50mPa·s 100 - 300mPa·s 300 - 500mPa·s 500 - 700mPa·s 800 - 1,200mPa·s | Viscosoty Loss on drying Endotoxin Level Bioburden | Grade-specific ≤15% ≤30EU/g ≤100CFU/g |
Approvals & Certifications:
ISO9001Physical Properties:
| Appearance: | Natural polysaccharide derived from brown algae. |
|---|---|
| Solubility: | Highly water-soluble, forming viscous solutions. |
| Viscosity: | Available in a wide range from 1 to 1,200 mPa·s. |
| Rheology: | Exhibits pseudoplastic (shear-thinning) behavior. |
| Structural Recovery: | Rapidly regains viscosity after shear stress is removed. |
Chemical Properties:

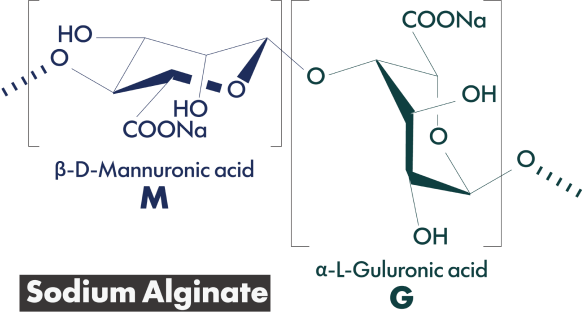

| Structure: | Linear polymer of Mannuronic acid (M) and Guluronic acid (G). |
|---|---|
| Purity: | Ultra-low endotoxin (≦10 or ≦30 EU/g) and low bioburden (≦100 CFU/g). |
| Reactivity: | Forms hydrogels instantly through cross-linking with divalent ions (e.g., Ca^{2+}). |
| Biocompatibility: | Low pro-inflammatory cytokine secretion (TNF-α, IL-6). |
Mechanical Properties:
| Tunable Texture: | Physical properties are adjustable via the M/G ratio. |
|---|---|
| Rigidity: | G-rich grades (M/G ≦ 0.8) offer high thermal stability and gel strength. |
| Elasticity: | M-rich grades (M/G ≧ 1.5) provide superior elasticity and hydration. |
| Workability: | High concentration solutions remain easy to pump and filter. |
