DENATITE XNR4175 / XNH4175

Name: DENATITE XNR4175 / XNH4175
Brand: DENATITE

DENATITE XNR4175 / XNH4175 is a 2 component epoxy resin for electrical components. It is used for potting winding coils on stator motors, providing electrical insulation, and has high heat resistance. It also provides chemical protection and has high thermal conductivity. Additionally, it is flame retardant and has high crack resistance.

Request a Quote

Applications & Uses:

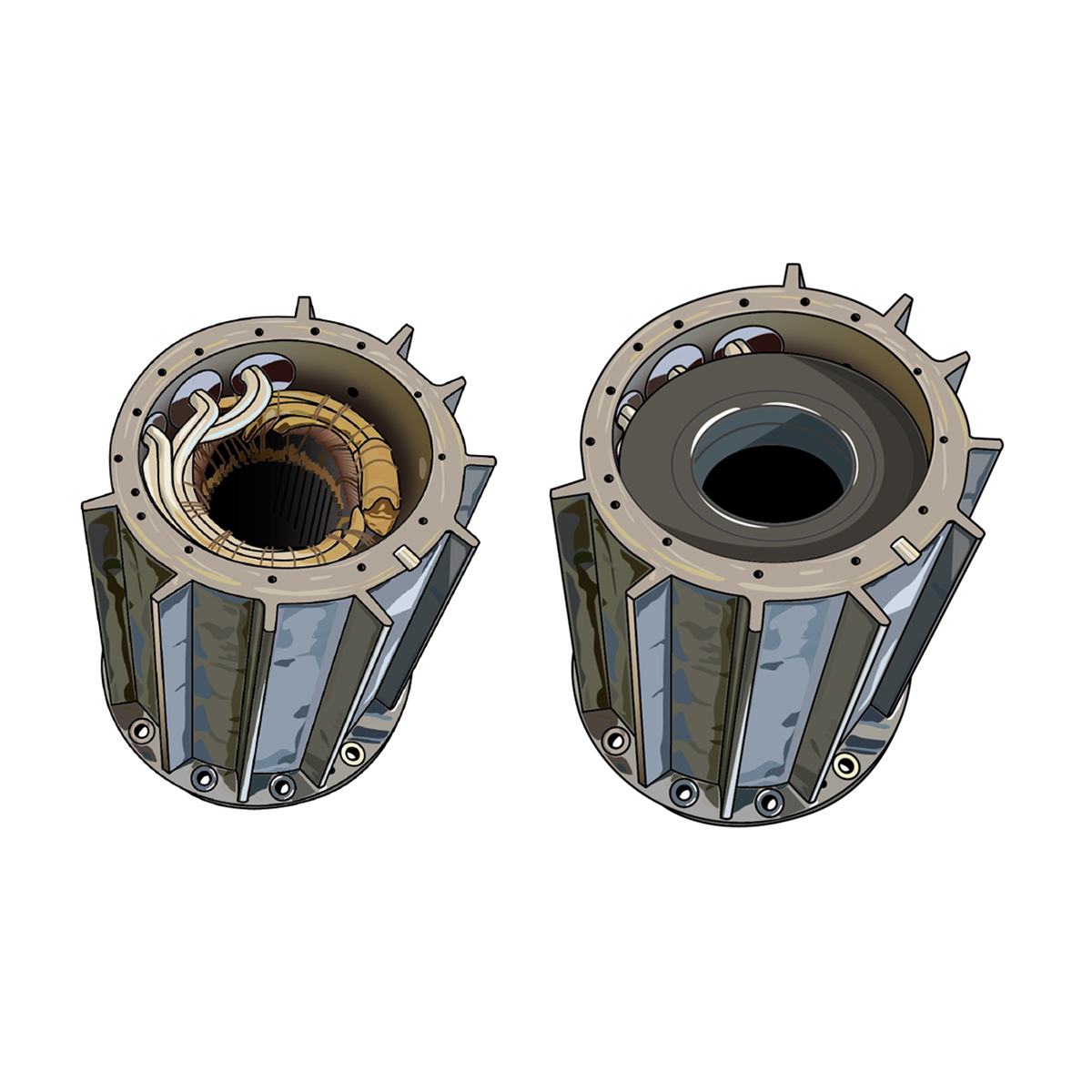

Potting for winding coil on stator motors

Compatible for large size industrial motors

High toughness and thermal conductivity (1W/mK)

Benefits:

Permanent protection of assembled winding coils wholly and penetrating into narrow gap between coils

Provides electrical insulation

Has high heat resistance

Provides chemical protection

Performance Attributes:

High thermal resistance (>150 dC)

Good thermal conductivity (1W/mK)

High crack resistance by heat shock testing

Flame retardance (UL94 V-0)

Approvals & Certifications:

ISO9001 Registered

Brand Description:

The Denatite Epoxy Resin series includes one-component and two-component epoxy adhesives. The series has extensive properties such as high adhesive strength, flexibility, and high heat resistance.

Manufacturer:

Nagase ChemteX Corporation

Sub Category:

2K Epoxy Resin for Electrical Components

Physical Properties:

Appearance XNR4175 :	Black Paste
Appearance XNH4175 :	Grayish White Liquid

Chemical Properties:

Specific Gravity XNR4175 :	2.28
Specific Gravity XNH4175 :	1.84
XNR4175 Viscosity :	364 Pa-s
XNH4175 Viscosity :	6 Pa-s
Mixing Ratio :	100:60 wt%
Viscosity of Mixture :	45 Pa-s@25dC, 5 Pa-s@60dC
Gelation Time :	22 min. @100dC

Mechanical Properties:

Modulus (Bending) :	16 Gpa
Tg :	163 dC
α1 :	14 ppm
Thermal Conductivity :	1.0W/mK

Packaging Properties:

XNR4175 :	25 kg in 18L Pail Cannister
XNH4175 :	20 kg in 18L Pail Cannister
Shelf Life :	9-12 Months from Production If Stored at Room Temperature (0-40dc) in a Dry Place and in Sealed Containers

Technical Data Sheet
